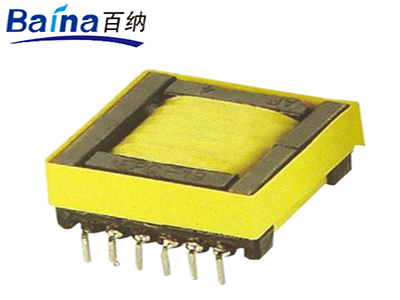

I. EPC17 high frequency Transformer size exterior map(in mm)

The above is the company's commonly used skeleton style, other styles are not included in the list, welcome to consult. The company can customize EPC 17 high frequency Transformers according to customer requirements.
II. Performance of EPC17 high frequency Transformers
1. Operating frequency: 20 kHz-500 KHz
2. Output power: 5 to 18 W
3. Operating temperature: -40 °C to +125 °C
4. Storage temperature: -25 °C to +85 °C
5. Storage humidity: 30 to 95 %
III. Characteristics of EPC 17 high frequency Transformers
EPC17 high-frequency Transformers have the characteristics of small size, cheap prices, and high reliability. The EPC Transformer is a high-frequency Transformer designed to adapt to ultra-thin switching power supplies. It has a flat ferrite core. Its shape can meet the requirements of the high power of the power transformer and the requirements of the ultra-thin volume. It can also meet the requirements of the switching power supply in terms of temperature rise, but the requirements for the PCB board will be improved. It is better than the EPD Transformer online packet space, while EMI performance, leakage sensitivity, radiation and other parameters are better than the EFD Transformer, and other properties are close to the EE and EC Transformers.
IV. Application of EPC 17 High Frequency Transformer
EPC17 high frequency Transformers are commonly used in DC-DC converters, drive Transformers, auxiliary power Transformers, booster circuit Transformers, and mobile equipment Transformers.
V. Price of EPC-17 high frequency Transformers
The price range of EPC17 high-frequency Transformers is generally between 1.5-2 .8 yuan(RMB). The price mainly depends on the complexity of the product, the customer's requirements for raw materials, and whether or not it requires safety certification.
